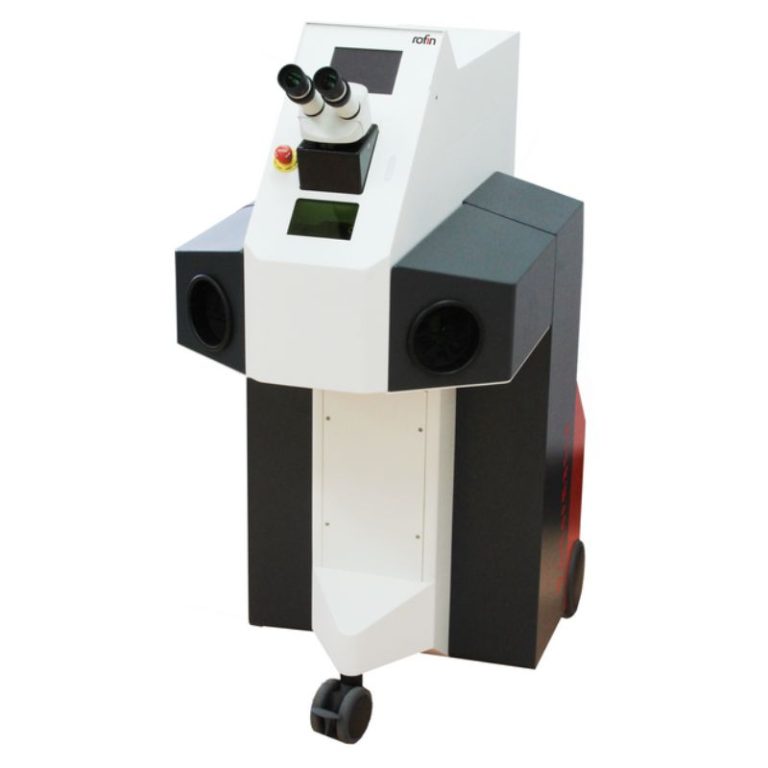

Bystronic Rofin – LSW6002F

The classic Work Horse, the best seller for the Jewelry industry.

Custom tailored to meet the needs of the bench jeweler as well as the 24/7 industrial manufacturer. Heavy duty components designed to last provide a reliable and trustworthy tool to manage all kinds of jewelry applications ranging from silver and gold to platinum, titanium and steel. Meets latest German industrial standards.

These machines are designed for:

– 24/7 operation and full duty-cycle at 35 °C
– Power Supply Unit with extensive power buffer due to generously dimensioned capacitor bank and PFC technology
– More power even with standard single-phase 16 A power supply
– Pulse repetition rates up to 50 Hz (and even more with SPEEDmode)
– Available for line voltage 230 V and 110 V
– Exhaust system with 99.997% HEPA filter and integrated spark filter.
– Cooling Unit (Water-Air) with µC controlled water temperature and flow rate
– Reliable operation at up to 40°C ambient temperature

Sweet spot

– Patented resonator design
– No first pulse effect
– Constant weld quality from the very first pulse
– Assures a reliable welding process
– Constant depth of focus
