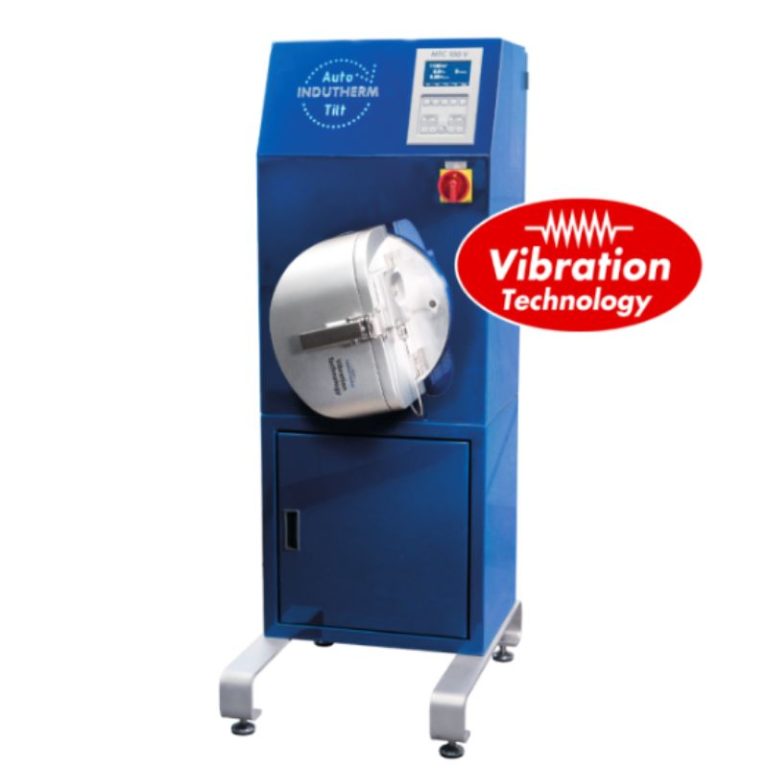

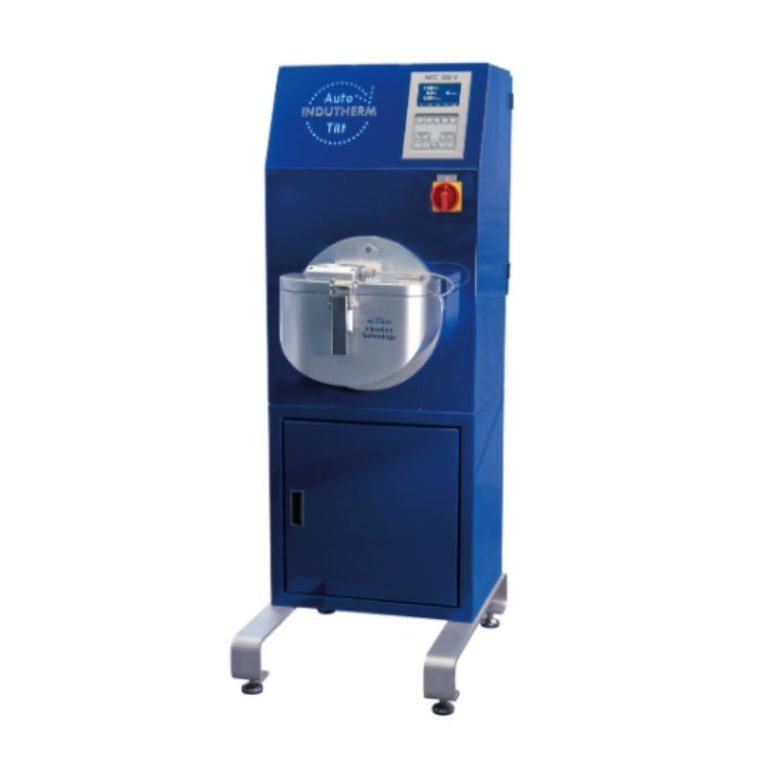

Indutherm – MTC100V

MTC Series – Vacuum Overpressure Platinum Casting Machine Easy handling, compact design

The MTC 100 V is a completely new, highly professional casting system for casting platinum jewellery. Instead of a fault-prone centrifugal casting principle, Indutherm relies on a specially developed, automatic pressure and tilting system.
This means that the new MTC 100V can not only be designed to be very compact, but also enables excellent mould filling for both delicate and solid castings. A multi-frequency infrared pyrometer, automatic tilting with adjustable speed and variable pressure build-up ensure optimal process control and consistently high casting quality. The new machine can also be used for casting with other alloys as gold and silver. In addition, it can be cast not only in jewellery moulds, but also in ingot moulds.

Selling point are:

– High speed pressure and tilting system
– Maximum casting quality by
Perfect form filling
Less porosity
Finest surface quality
– Up to 600 g Pt, for flasks up to Ø 100/150 mm H
– Can cast gold ,silver and Platinum
– High quality multi-wavelength infrared pyrometer (option)
– 8 kW induction power, up to 2100° C
– Automatic tilting with adjustable speed
– Compact design and safer than a centrifugal caster
