Indutherm – TF2000

Tilting Furnaces for Ingot & Shell Mould Casting

The TF series tilting furnaces are equipped with 32-bit induction generators providing 15-60 kW output power (depending on which version of the furnace). Low frequency tuning means excellent through-mixing of the molten material. All versions are controlled via a console with a LCD display (full text readout). Efficient thermal insulation and electromagnetic shielding ensure a high level of effectiveness.

These machines are designed for:

– Melting large quantities like antique gold or manufacturing residues like casting waste, scrap or swarf
– Recycling sector
– Casting large parts using the shell mould casting process

New & Highly Cost-Effective

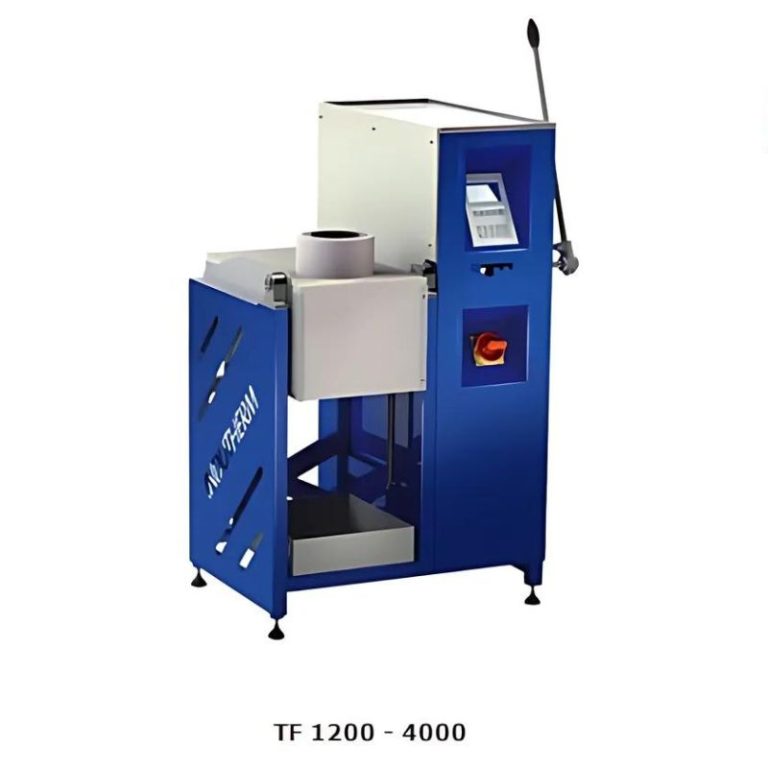

The new “small” TFs (TF1200-TF4000) have been developed with the focus on least possible energy consumption and safe/ergonomic handling. Offering the same maximum outputs like before, the effective power consumption now has dropped significantly – on a level where competitor machines cannot go with.

The Giants Among Tilting Furnaces

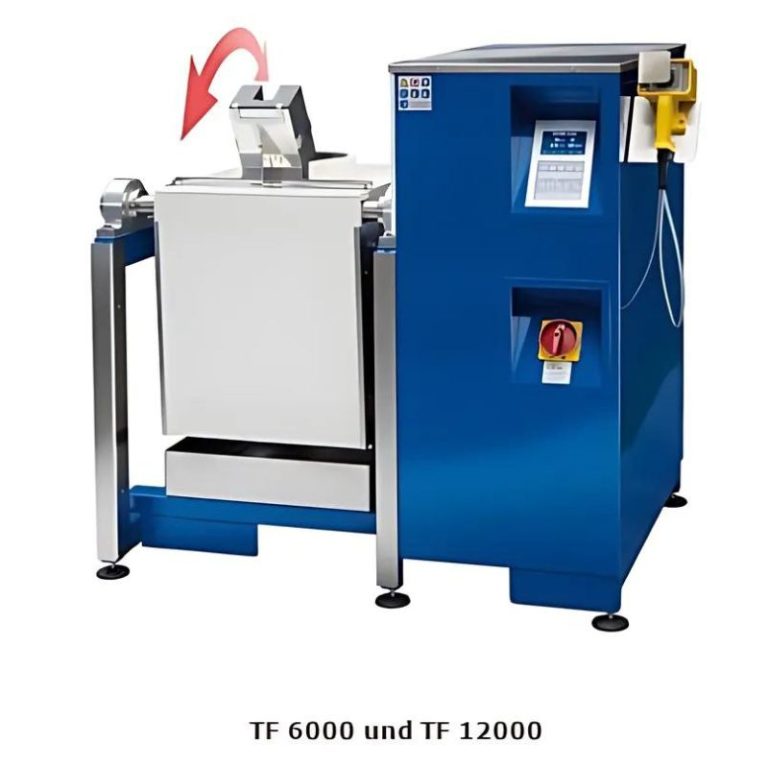

The large crucible volumes between 6000 – 12000 ccm (TF6000 & TF12000) give these machines enormous capacity. Because of the potentially large weight, the inductor/crucible unit uses a motor drive with a stable shaft. The use of a joystick enables the tilting process in a controlled and sensitive way.
