Posts in category: Casting Articles

Even trace levels of contamination can compromise the structural integrity and surface finish of cast jewelry. Understanding where these impurities originate and how to stop them is fundamental to defect-free production.

The scale of the problem

In jewelry casting, purity is not a luxury, it is a prerequisite. Metals marketed as 99.9% pure still carry up to 0.1% in residual impurities and that margin is enough to cause serious defects. Iron contamination at concentrations as low as 100–200 ppm has been shown to initiate cracking in gold alloys. Lead and sulphide inclusions can strip an alloy of nearly all its mechanical strength.

Iron contamination at just 100 ppm can initiate cracking in gold alloys.

Where contamination enters the process

Contamination has three primary entry points. The first is the raw material itself, where even certified metals carry trace elements from refining. The second and most frequently cited is scrap recycling. Inadequately cleaned returns introduce oxides, investment residues and foreign metallic particles directly into the melt. The third is the casting environment: steel tools, worn crucibles and airborne dust all contribute contamination during melting and pouring.

A taxonomy of defects

The type of defect produced depends largely on what entered the melt and when

Cracks & brittleness

Iron, lead or sulphide inclusions reducing alloy ductility and strength

Surface porosity

Investment particles or slag entering the melt; visible after polishing as scattered pores

Oxide inclusions

Zinc oxide producing “crow’s foot” porosity is difficult to remove once formed

Slag inclusions

Excess or contaminated flux creating rough, cauliflower-textured surfaces

Hard spots

Undissolved grain refiners such as iridium forming particles that resist polishing and cause cracking

Prevention

Control must be applied at every stage of the process, not treated as a final quality check.

• Source high-quality, certified raw materials and verify composition
• Keep scrap clean; limit the proportion of recycled content per melt
• Use dedicated, clean crucibles and replace them before wear introduces contamination
• Minimise flux additions and eliminate contaminated stock
• Maintain proper investment mixing, storage and burnout procedures
• Melt under a protective atmosphere where possible to suppress oxide formation

Conclusion

Impurity control is not a peripheral concern, it sits at the core of casting quality. The consequences of contamination are disproportionate to the quantities involved: a part-per-million problem can become a visible, structural or commercial failure. A disciplined approach to materials selection, scrap management and process hygiene remains the most reliable path to consistent, defect-free output.

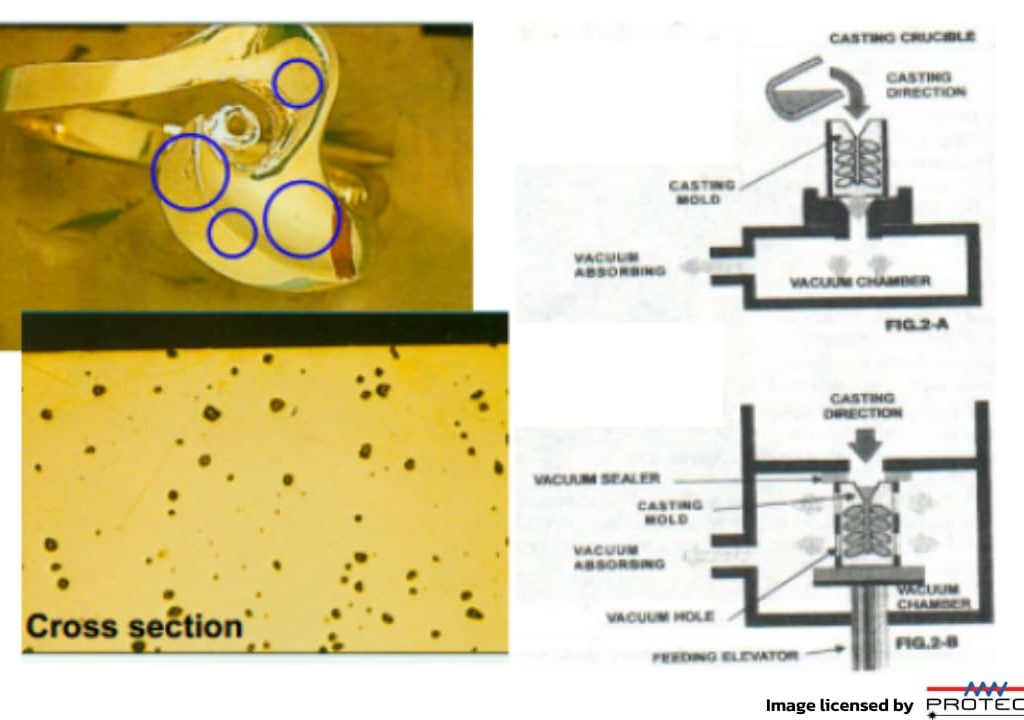

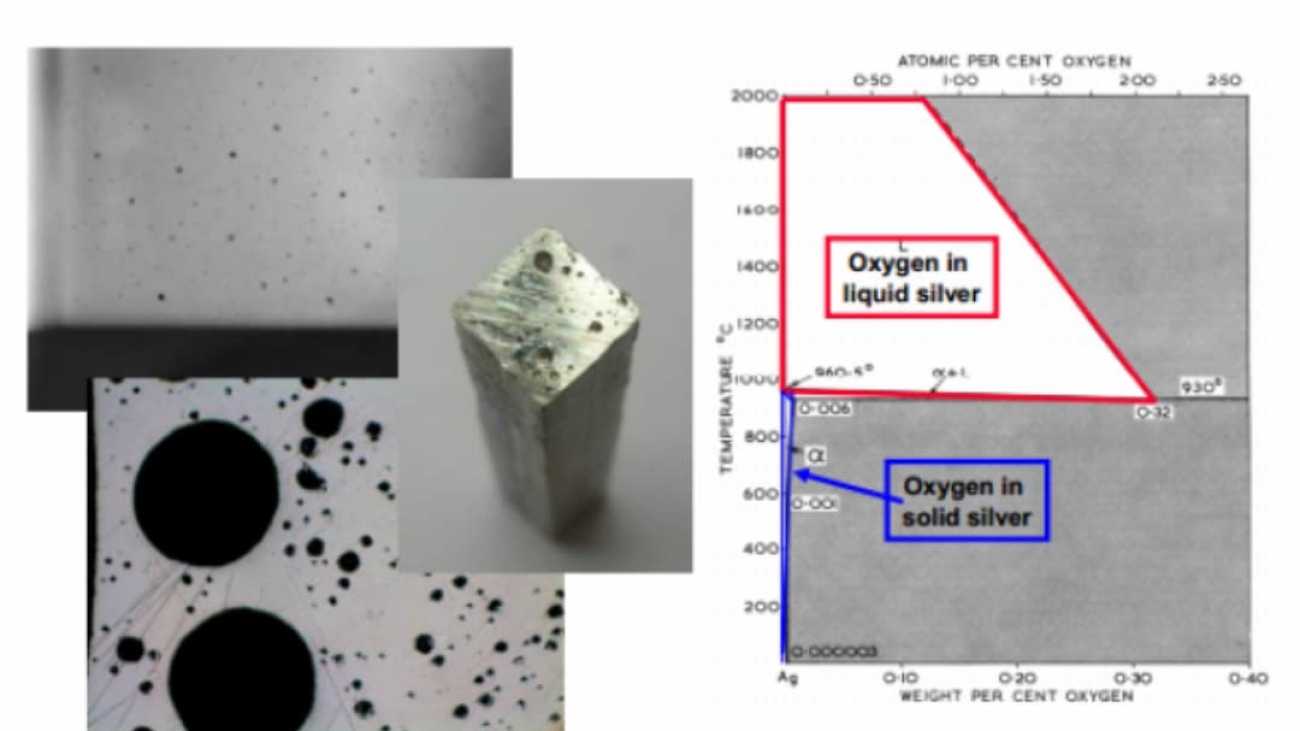

Surface defects – Small Pores on Surface

Surface defects – Pores and Dendrites

Surface defects – Irregular Surface Structure

Defects Caused by Investment or Investing Process – Rough Surface

Inclusions – Hard Spots

Fracture – Brittle Fracture

Fracture – Fracture Material Separation

What is Shrinkage Porosity?

Shrinkage porosity refers to irregular cavities formed in metal as it shrinks while solidifying, that is a common occurrence in jewelry casting. This shrinkage results from a sudden reduction in volume as metals transform from a liquid to a solid state. In different alloys, this shrinkage can range from 4-6% for metals like gold and silver. If not effectively managed, shrinkage porosity leads to visible defects in cast items, like irregular holes and caves.

Formation and Appearance

During the solidification process, metal dendrites (branch-like crystals) develop and liquid metal must flow between these branches to compensate for the shrinkage. When this “feeding” process fails, it results in porosity. Certain metals, such as white gold, are more susceptible to shrinkage porosity compared to others like yellow gold or sterling silver. Protech Transfer’s advanced casting machines can help optimize the feeding process to reduce these risks. Special attention should also be paid to the correct location and size of the sprues and feeders.

Prevention Methods

1. Effective Feed-Sprue Systems
   Designing effective feed-sprue systems is essential. Feed-sprues is a reservoir of liquid metal that fills the voids created by shrinkage. Proper positioning of the sprue is crucial; it should be attached to the heaviest section of the jewelry piece.
2. Control of Flask and Casting Temperatures
   Flask and casting temperatures significantly influence shrinkage. Higher flask temperatures can be beneficial, but they must be carefully managed to avoid introducing other defects, such as gas porosity.

Conclusion

To avoid shrinkage porosity, effective sprue design and temperature control are vital, especially for alloys with lower thermal conductivity, like white gold. Utilizing Protech Transfer’s machinery from Indutherm.de can enhance your casting process, reducing the likelihood of defects and improving the overall quality of your jewelry.

Understanding Jewelry Spots

Spots in jewelry are foreign particles that become embedded in the surface of a piece, resulting in visible defects. These spots consist of materials that differ from the jewelry itself and can often be seen with the naked eye. Identifying these spots early is crucial for maintaining high-quality standards in jewelry production.

Types of Spots

1. Hard Spots
   Hard spots are made from tough materials like metals (iridium, osmium) or oxides contamination. When polishing jewelry with hard spots, the polishing brush tends to leave “comet tail” marks due to the resistance presented by the hard material.
2. Soft Spots
   Soft spots consist of softer materials like graphite, plaster or talcum powder, which do not resist polishing. As a result, they typically do not leave comet tails during the finishing process, but can leave the caves.

Sources of Spot Contamination

• Raw Materials: Poorly refined metals can contain contaminants such as osmium, iridium or ruthenium, which can lead to hard spots in the final product.
• Melting Phase: Poor or faulty equipment may be the reason contaminants like oxides during the casting process.
• Nickel Silicides: Commonly found in white gold alloys, these hard spots can form during slow cooling or poor mixing and their presence increases when recycled materials are reused.
• Finishing Phase: Materials used in sandblasting and polishing, such as alumina or silica, can get trapped in porous surfaces, resulting in spots.

How to Avoid Spots

1. Use Properly Refined Metals
   Ensure that the metals used in jewelry production are thoroughly refined to reduce the risk of contaminants.
2. Control Melting and Cooling Processes
   Maintain careful control during the melting and cooling phases to minimize the introduction of foreign particles.
3. Avoid Reusing Scrap Materials
   Steer clear of reusing scrap materials that may contain contaminants, as they can lead to defects in the finished piece.
4. Reduce Surface Porosity
   Take steps to minimize porosity in the jewelry surface, which can trap particles during the finishing process.

Conclusion

Understanding and addressing hard and soft spots in jewelry is essential for achieving high-quality results. By utilizing advanced machinery from Protech Transfer from Indutherm.de, you can enhance your production process and reduce the risk of defects, ensuring a beautiful finish for your jewelry pieces.

Understanding Metal Flow in Jewelry Casting

The properties of liquid metal significantly influence its behavior during the casting process. Factors such as alloy composition and interaction with investment plaster affect its flow and filling ability. Additionally, solidification characteristics, including shrinkage and grain size, play a crucial role in determining the metal structure and surface quality of the production. Protech Transfer’s advanced casting machines help optimize these processes for superior and stable repeatability results.

Factors Affecting Metal Flow

1. Viscosity
   Viscosity refers to the thickness of a liquid. A higher viscosity means a slower flow of metal. Temperature is a key factor affecting viscosity; as the temperature rises, viscosity decreases, facilitating better metal flow during the casting process.
2. Surface Tension
   Surface tension is the force that allows a liquid to resist external forces. It impacts the liquid’s ability to wet surfaces and fill investment flasks, which is essential for reproducing intricate details in jewelry. Utilizing the right machinery from Protech Transfer can help manage these factors effectively.

Solidification Factors

Grain refiners in alloys enhance form filling by influencing grain size during solidification. A fine grain structure leads to improved detail reproduction, while certain elements can negatively affect this process. Understanding these properties is vital for jewelers seeking high-quality outcomes.

The Role of Vibration Technology

Incorporating vibration during the casting process can significantly improve quality. Vibration helps to reduce porosity, achieve smaller grain sizes and enhance material flow. This results in fewer defects and better casting stability, ultimately leading to higher quality jewelry with minimal post-processing requirements.

Casting from vacuum to vacuum

Indutherm casting machines implement the casting from vacuum to vacuum. The absence of air resistance significantly improves the form filling of even the thinnest and most filigree items

Conclusion

Achieving optimal form filling in jewelry making relies on careful control of alloy properties and casting parameters. By understanding factors affecting metal flow and leveraging advanced techniques that implement Indutherm.de casting machines, jewelers can produce superior pieces that meet the highest quality standards.
